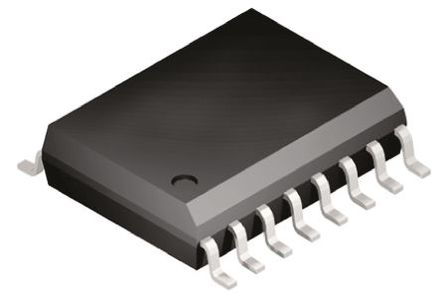

MC14051BDTR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2750000
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
MC14051BDTR2G, Multiplexer Single 8:1, 12V, 15V, 5V, 9V, 16Pin TSSOP
Stock Locations:
Availability:
73 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC14051BDTR2G is an Analog Multiplexer/Digitally-controlled Analog Switch. The device effectively implements an SP8T solid state switch. The device features low ON impedance and very low OFF leakage current. Control of analog signals up to the complete supply voltage range can be achieved.
Triple diode protection on control inputs
Switch function is break before make
Pin-for-Pin Replacement for CD4051
Linearized transfer characteristics
12nV/√Cycle, f >=1.0kHz (typical) Low-noise

Show

MC14051BDTR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Capacitance	7.5 pF
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Contacts Type	SP8T
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Power Dissipation	500 mW
Quiescent Current	20 µA
Bandwidth	17 MHz
Number of Inputs	8 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	17 MHz
Power Dissipation (Max)	500 mW
Supply Voltage	3V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3 V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
