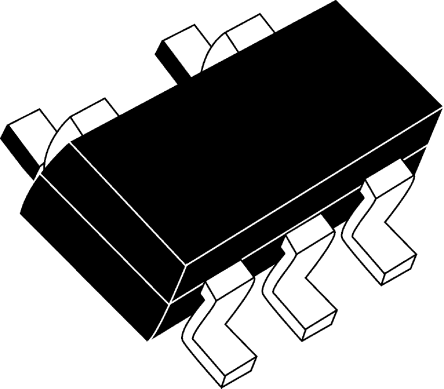

MC74HC1G14DTT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC624182
Category:
Logic Control, Logic Gate IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC74HC1G14DTT1G Inverter, Schmitt Trigger, 74HC1G14, 1Input, 2.6mA, 2V to 6V, SOT-23-5
Stock Locations:
Availability:
140 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.14

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC74HC1G14DTT1G is a high speed CMOS single Inverter with Schmitt-trigger input fabricated with silicon gate CMOS technology. The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output. The MC74HC1G14 output drive current is 1/2 compared to MC74HC series.
7ns Propagation delay (tPD)
1µA Low power dissipation (ICC)
High noise immunity
Balanced propagation delays
Symmetrical output impedance
Chip complexity - 101 FETs

Show

MC74HC1G14DTT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	2.00V (min)
Halogen Free Status	Halogen Free
Output Current	2.6 mA
Number of Circuits	1 Circuit
Number of Positions	5 Position
Number of Gates	1 Gate
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	3 mm
Size-Width	1 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
