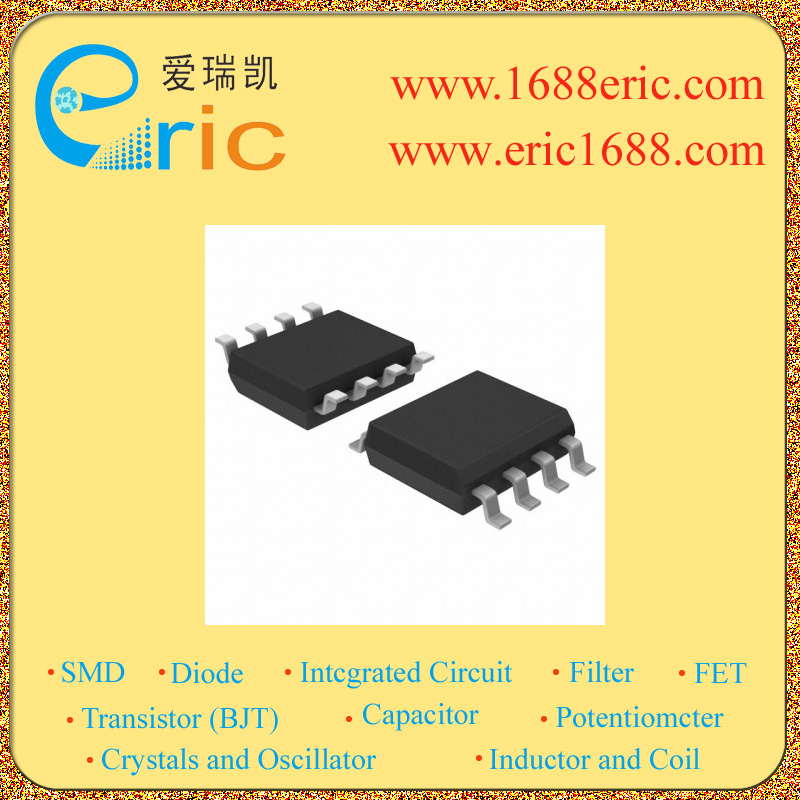

Image is for your reference only,please check specifications for details

MIC39102BM - Micrel
Manufacturer:
Micrel
ManyChip's Part#:
MC151037766
Category:
Voltage Regulator
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
MICREL SEMICONDUCTOR MIC39102BM LDO Voltage Regulator, Adjustable, 2.25V-16V in, 410mV drop., 1.24V-16V/1A out, SOIC-8
Stock Locations:
Availability:
246 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.29

Updated at 06/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The MIC39100, MIC39101, and MIC39102 are 1A low-dropout linear voltage regulators that provide low-voltage, high-current output from an extremely small package. Utilizing Micrel’s proprietary Super βeta PNP™ pass element, the MIC39100/1/2 offers extremely low dropout (typically 410mV at 1A) and low ground current (typically 11mA at 1A).
Features
• Fixed and adjustable output voltages to 1.24V
• 410mV typical dropout at 1A
Ideal for 3.0V to 2.5V conversion
Ideal for 2.5V to 1.8V conversion
• 1A minimum guaranteed output current
• 1% initial accuracy
• Low ground current
• Current limiting and thermal shutdown
• Reversed-battery protection
• Reversed-leakage protection
• Fast transient response
• Low-profile SOT-223 package
• Power SO-8 package
Applications
• LDO linear regulator for PC add-in cards
• PowerPC™ power supplies
• High-efficiency linear power supplies
• SMPS post regulator
• Multimedia and PC processor supplies
• Battery chargers
• Low-voltage microcontrollers and digital logic

Show

MIC39102BM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Current Rating	1.00 A
Input Voltage (DC)	16.0V (max)
Output Voltage	1.24V ~ 16V
Output Current	1 A
voltage rating	410 mV
Input Voltage (Max)	16 V
Input Voltage (Min)	2.25 V
Output Voltage (Max)	16 V
Output Voltage (Min)	1.24 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.25V ~ 16V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Obsolete
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
