Description

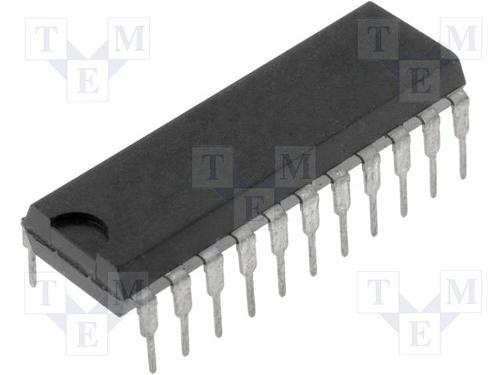

The MIC5801YN is an 8bit parallel input latched driver in 22 pin DIP package. This high voltage, high current device is comprised of eight CMOS data latches, bipolar darlington transistor driver for each latch and CMOS control circuitry for common CLEAR, STROBE and OUTPUT ENABLE functions. The bipolar/MOS combination provides an extremely low power latch with maximum interface flexibility. The CMOS inputs are compatible with standard CMOS, PMOS and NMOS circuits. TTL or DTL circuits may require the use of appropriate pull up resistors. The MIC5801YN has greatly improved data input rate. It will typically operate better than 5MHz with 5V supply and significantly higher speed with 12V supply.
4.4MHz minimum data input rate
High voltage, current sink outputs
Continuous collector current (Ic) of 500mA
Output transient protection
Internal pull down resistors
Low power CMOS latches
Output voltage (VCE) of 50V
Supply voltage (VDD) of 15V
Package power dissipation of 2.5W
Operating temperature range from -40°C to 85°C

Show

MIC5801YN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	22 Pin
Case/Package	DIP-22
Supply Voltage (DC)	5.00V (min)
Number of Outputs	8 Output
Output Voltage	50 V
Output Current	500 mA
Number of Channels	8 Channel
Polarity	NPN
Output Current (Max)	500 mA
Supply Voltage	15 VDC
Supply Voltage (Max)	15 V
Supply Voltage (Min)	5 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
