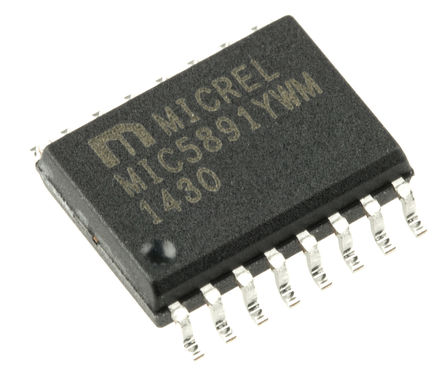

Image is for your reference only,please check specifications for details

MIC5891YWM - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC14868900
Category:
Logic Control, Logic Gate IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
MIC5891 Series 15V 5MHz 8Bit Serial-Input Latched Driver - SOIC-16W
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC5891YWM is a 8-bit serial-input Latched Source Driver with high-voltage, high current integrated circuit comprised of CMOS data latches, CMOS control circuitry for the common STROBE and OUTPUT ENABLE and bi-polar Darlington transistor drivers for each latch. bi-polar/MOS construction provides extremely low power latches with maximum interface flexibility. The MIC5891 will typically operate at 5MHz with a 5V logic supply. The CMOS inputs are compatible with standard CMOS, PMOS and NMOS logic levels. TTL circuits may be used with appropriate pull-up resistors to ensure a proper logic-high input. A CMOS serial data output allows additional drivers to be cascaded when more than 8-bit are required.
High voltage, High current outputs
Output transient protection diodes
Low-power CMOS latches

Show

MIC5891YWM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Number of Outputs	8 Output
Output Voltage	50 V
Output Current	500 mA
Number of Bits	8 Bit
Output Current (Max)	500 mA
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 15V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	5 V
	Show
Size-Length	10.39 mm
Size-Width	7.65 mm
Size-Height	2.26 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
