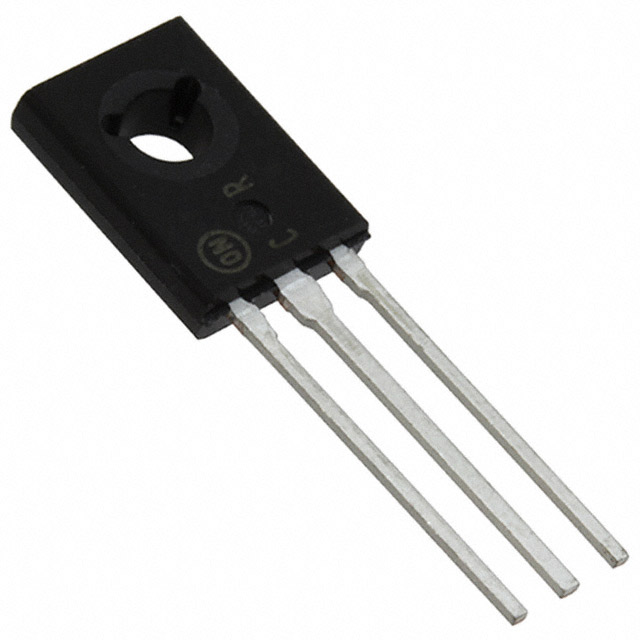

MJE803 - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC161647903
Category:
BJT Transistor, BJT
Datasheet:
Datasheet 3D Model
Description:
4.0 AMPERE DARLINGTON POWER TRANSISTORS COMPLEMENTARY SILICON 40W 50W
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MJE803 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-225-3
Voltage Rating (DC)	80.0 V
Current Rating	4.00 A
Power Dissipation	40 W
Breakdown Voltage (Collector to Emitter)	80 V
hFE Min	750 @2A, 3V
Input Power (Max)	40 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	7.74 mm
Size-Width	2.66 mm
Size-Height	11.04 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
