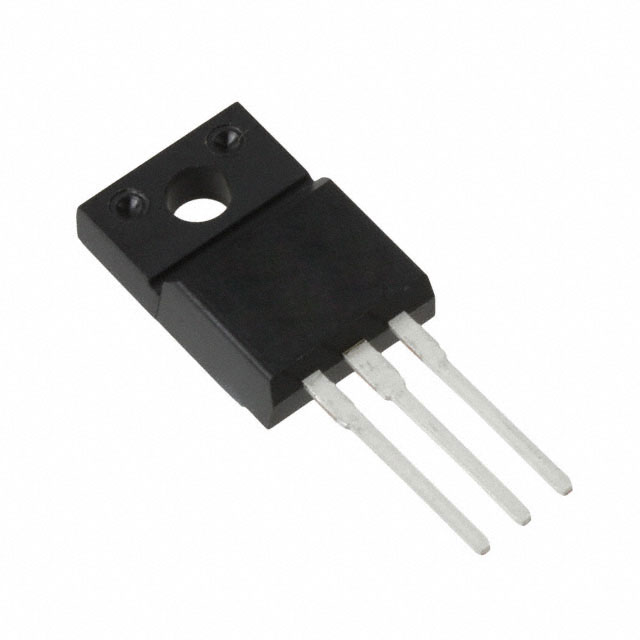

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Complementary Power Darlingtons
For Isolated Package Applications
Designed for general−purpose amplifiers and switching applications, where the mounting surface of the device is required to be electrically isolated from the heatsink or chassis.
Features
•Electrically Similar to the Popular TIP122 and TIP127
•100 VCEO(sus)
•5.0 A Rated Collector Current
•No Isolating Washers Required
•Reduced System Cost
•High DC Current Gain −2000 (Min) @ IC= 3 Adc
•UL Recognized, File #E69369, to 3500 VRMSIsolation
•Pb−Free Packages are Available

Show

MJF127 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Voltage Rating (DC)	-100 V
Current Rating	-5.00 A
Polarity	PNP
Power Dissipation	30 W
Breakdown Voltage (Collector to Emitter)	100 V
Continuous Collector Current	5A
hFE Min	2000 @3A, 3V
Input Power (Max)	2 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	10.63 mm
Size-Width	4.9 mm
Size-Height	9.24 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	50
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
