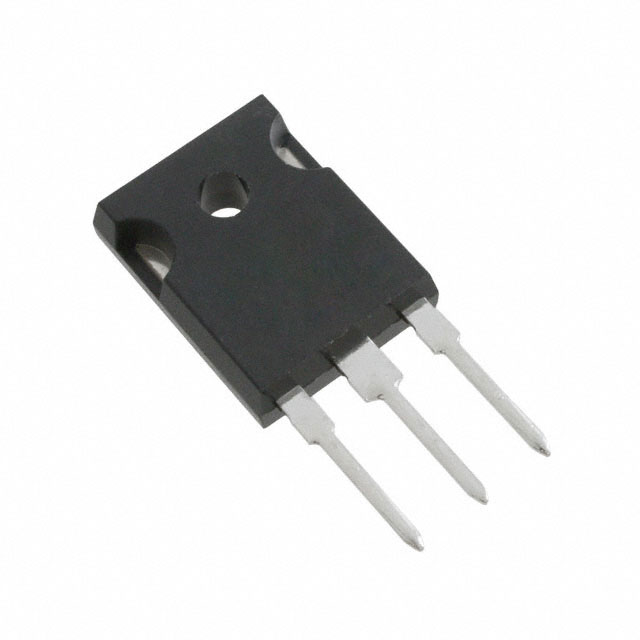

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

MJW18020 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-247-3
Polarity	NPN
Power Dissipation	250 W
Gain Bandwidth Product	13 MHz
Breakdown Voltage (Collector to Emitter)	450 V
Continuous Collector Current	30A
hFE Min	14
hFE Max	34
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	16.26 mm
Size-Width	5.3 mm
Size-Height	21.08 mm
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	30
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
