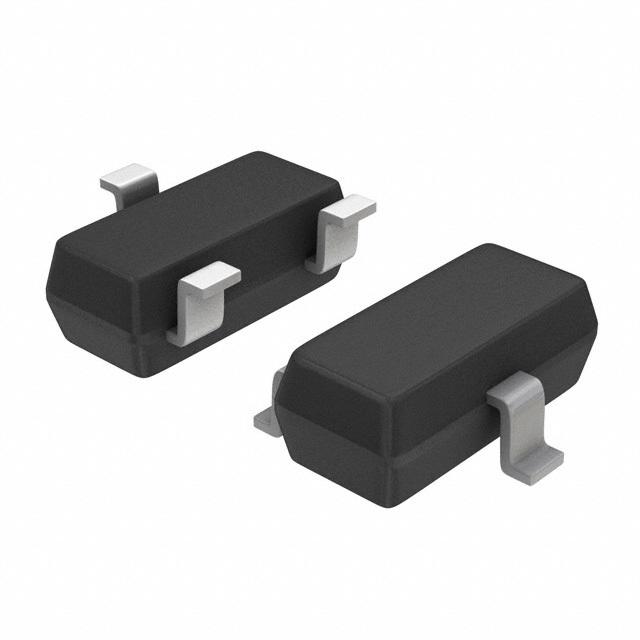

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

High Voltage Transistors PNP Silicon Features • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Show

MMBTA92LT1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	-300 V
Current Rating	-500 mA
Polarity	Dual P-Channel
Power Dissipation	300 mW
Breakdown Voltage (Collector to Base)	-300 V (min)
Breakdown Voltage (Collector to Emitter)	300 V
hFE Min	25 @30mA, 10V
Input Power (Max)	300 mW
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
HK STC License	NLR
