MMSZ5228B - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC12828703
Category:
Zener Diode, Zener
Package:
SOD-123
Datasheet:
Datasheet 3D Model
Description:

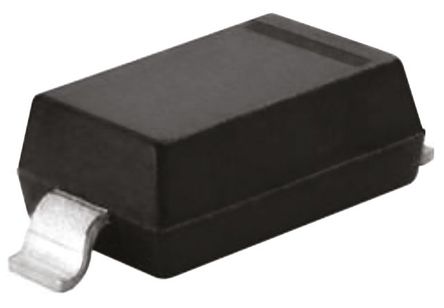

FAIRCHILD SEMICONDUCTOR MMSZ5228B Zener Single Diode, 3.9V, 0.5W(1/2W), SOD-123, 5%, 2Pins, 150℃
Stock Locations:
Availability:
244 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MMSZ5228B is a half watt general purpose medium current surface mount Zener Diode in the SOD-123 package provides high power and current handling capability. The SOD-123 package has the same footprint as the glass MiniMELF (LL-34) package and provides a convenient alternative to the leadless package. This product is general usage and suitable for many different applications.
Compact surface mount with same footprint as MiniMELF
500mW Rating on FR-4 or FR-5 board
Low gate charge (typical 5nC)
Class 3 ESD rating (>16kV) per human body model

Show

MMSZ5228B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Voltage Rating (DC)	3.90 V
Capacitance Tolerance	±5 %
Power Rating	500 mW
Number of Positions	2 Position
Forward Voltage	900mV @10mA
Power Dissipation	500 mW
Test Current	20 mA
Zener Voltage	3.9 V
Maximum Forward Voltage (Max)	900mV @10mA
Input Power (Max)	500 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	Show
Size-Length	2.7 mm
Size-Width	1.6 mm
Size-Height	1.03 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
