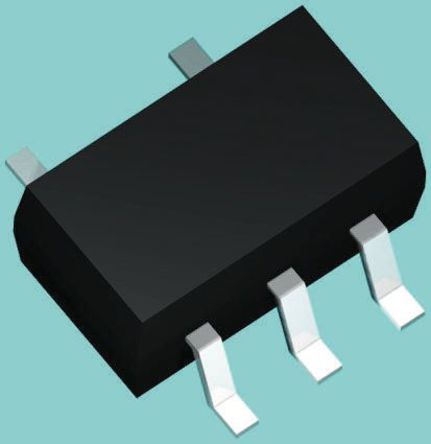

Image is for your reference only,please check specifications for details

MSQA6V1W5T2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1227675
Category:
TVS Diode
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MSQA6V1W5T2G ESD Protection Device, TVS, SOT-353, 5Pins, 1.25V, 150W
Stock Locations:
Availability:
4,313 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.07

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

With ON Semiconductor"s tvs MSQA6V1W5T2G ESD protection device you will protect your circuits from electrostatic discharge while ensuring signal integrity. This ESD diode has a maximum ESD protection device voltage of 16@Air Gap/9@Contact Disc kV. This ESD diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a quad common anode configuration. Its capacitance value is 90 pF.

Show

MSQA6V1W5T2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Voltage Rating (DC)	6.60 V
Operating Voltage	1.25 V
Capacitance	90 pF
Power Rating	150 W
Halogen Free Status	Halogen Free
Breakdown Voltage	6.1 V
Number of Channels	4 Channel
Number of Positions	5 Position
Power Dissipation	150 W
Max Repetitive Reverse Voltage (Vrrm)	3V
Test Current	1 mA
Peak Pulse Power	150 W
Min Breakdown Voltage	6.1 V
Max Reverse Leakage Current (Ir)	11uA
Reverse Breakdown Voltage	6.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	385 mW
	Show
Size-Length	2.2 mm
Size-Width	1 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
