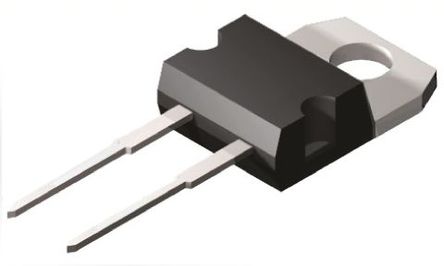

Image is for your reference only,please check specifications for details

MSR1560G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC42149437
Category:
Schottky Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MSR1560G Fast / Ultrafast Power Diode, 600V, 15A, Single, 1.8V, 45ns, 100A
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

SWITCHMODE™ Soft Recovery Power Rectifier
These state−of−the−art devices are designed for boost converter or hard−switched converter applications, especially for Power Factor Correction application. It could also be used as a free wheeling diode in variable speed motor control applications and switching mode power supplies.
Features
• Soft Recovery with Low Reverse Recovery Charge (QRR) and Peak
Reverse Recovery Current (IRRM)
• 150°C Operating Junction Temperature
• Popular TO−220 Package
• Epoxy meets UL 94 V−0 @ 0.125 in
• Low Forward Voltage
• Low Leakage Current
• High Temperature Glass Passivated Junction
• Pb−Free Package is Available

Show

MSR1560G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	600 V
Current Rating	15.0 A
Output Current	≤15.0 A
Forward Voltage	1.8 V
Polarity	Standard
Reverse recovery time	45 ns
Forward Current	15 A
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	1.2 V
Forward Current (Max)	15 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	10.29 mm
Size-Width	4.82 mm
Size-Height	15.75 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
