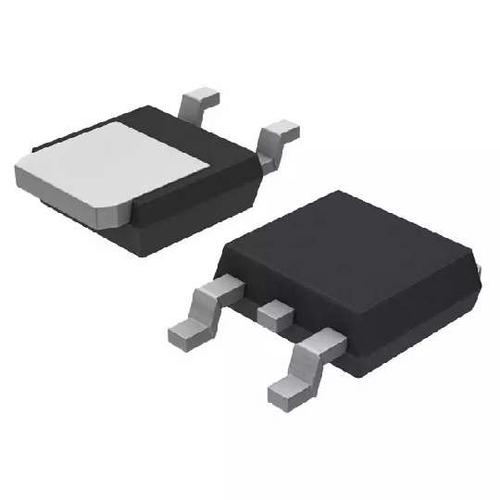

Image is for your reference only,please check specifications for details

MSRD620CTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC19258615
Category:
Diode Array, TVS Diode Array
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MSRD620CTG Fast / Ultrafast Diode, 200V, 6A, Dual Common Cathode, 1.35V, 55ns, 50A
Stock Locations:
Availability:
239 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Diode Array 1 Pair Common Cathode Standard 200V 3A Surface Mount TO-252-3, DPak (2 Leads + Tab), SC-63

Show

MSRD620CTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	200 V
Current Rating	6.00 A
Halogen Free Status	Halogen Free
Forward Voltage	1.35 V
Reverse recovery time	55 ns
Forward Current	6 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	1.35 V
Forward Current (Max)	6 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
