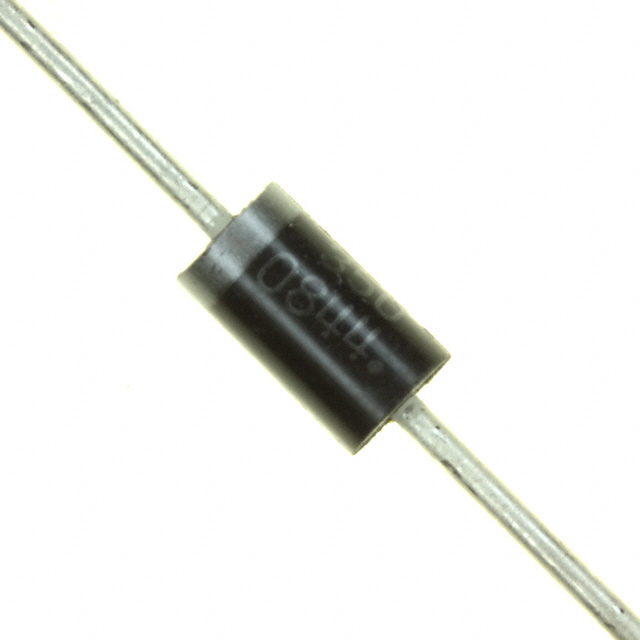

Image is for your reference only,please check specifications for details
Updated at 30/06/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- SWITCHMODE Power Rectifiers
- Ultrafast “E’’ Series with High Reverse Energy Capability
- These state−of−the−art devices are designed for use in switching power supplies, inverters and as free wheeling diodes.
- Features
- •20 mJ Avalanche Energy Guaranteed
- •Excellent Protection Against Voltage Transients in Switching Inductive Load Circuits
- •Ultrafast 75 Nanosecond Recovery Time
- •175°C Operating Junction Temperature
- •Low Forward Voltage
- •Low Leakage Current
- •High Temperature Glass Passivated Junction
- •Reverse Voltage to 1000 V
- •These are Pb−Free Devices
MUR4100ERL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-201AA |
| Voltage Rating (DC) | 1.00 kV |
| Current Rating | 4.00 A |
| Output Current | ≤4.00 A |
| Forward Voltage | 1.85V @4A |
| Polarity | Standard |
| Reverse recovery time | 100 ns |
| Maximum Forward Voltage (Max) | 1.85V @4A |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
