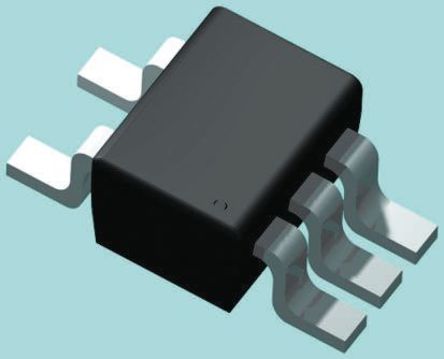

NCP702SN33T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC18480357
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP702SN33T1G Fixed LDO Voltage Regulator, 2V to 5.5V In, 140mV Dropout, 3.3V/200mA Out, TSOP-5
Stock Locations:
Availability:
271 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.82

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP702SN33T1G is a 3.3V fixed output low-dropout (LDO) Linear Regulator with ultra-low noise and very high power supply rejection ratio (PSRR). The device doesn"t require an additional noise bypass capacitor to achieve ultra-low noise performance. The device employs an adaptive ground current feature for ultra-low ground current consumption during light-load conditions.
2.5mV Output voltage trimming step
10µA Ultra-low quiescent current (typical)
11µVrms Ultra low noise (from 100Hz to 100kHz)
±2% Accuracy over load, line and temperature
68dB at 1kHz High PSRR
Internal soft-start to limit the turn-ON inrush current
Thermal shutdown and current limit protection
Stable with a 1µF ceramic output capacitor
Active output discharge for fast turn-OFF

Show

NCP702SN33T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	200 mA
Supply Current	16 μA
Number of Positions	5 Position
Polarity	P-Channel
Quiescent Current	16 µA
voltage rating	140 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2 V
Output Current (Max)	0.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	≤5.5 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
