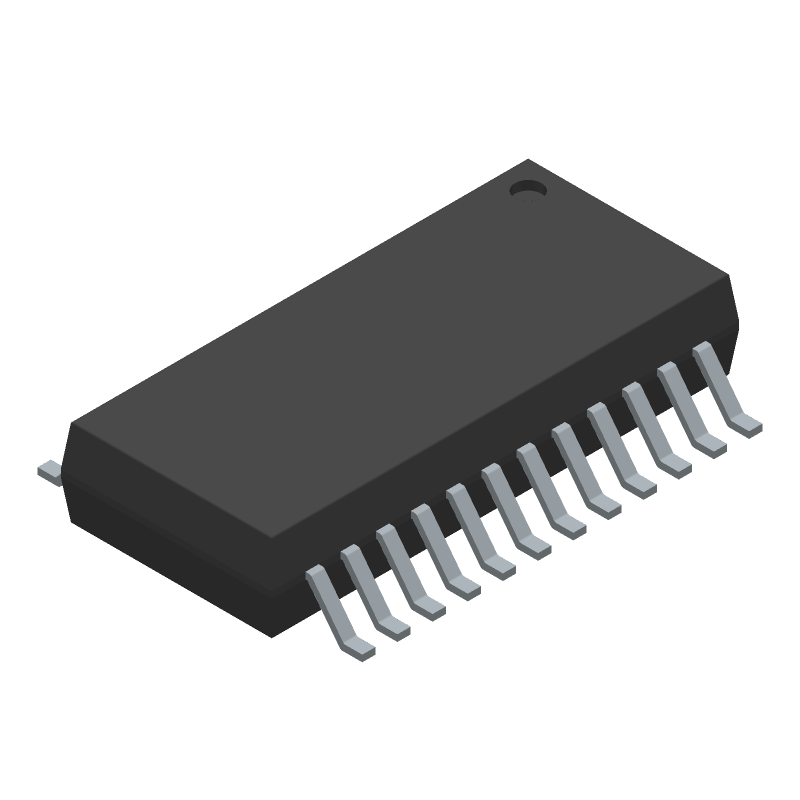

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCV7751 is an automotive grade twelve channel low−side driver providing drive capability up to 600 mA per channel. Output control is via a SPI communication and offers convenient reporting of faults for open load (or short to ground), over load, and over temperature conditions. Additionally, all the drivers have integrated output clamps for inductive loads. The NCV7751 is available in a SSOP−24 exposed pad package for optimal thermal performance.
Features
---
|
12 Channels
600 mA Low−Side Drivers
\- RDS(on) 1.3 Ω (typ), 2.5 Ω (max)
Configurable SPI Control (16/24/32 Bit)
\- Compatible with NCV7240
\- Frame Error Detection
\- Daisy Chain Capable
Power Up Without Open Circuit Detection Active (for LED applications)
Low Quiescent Current in Sleep and Standby Modes
3.3 V and 5 V compatible Digital Input Supply Range
Fault Reporting
\- Open Load Detection (Selectable)
\- Over Load
\- Over Temperature
Power−on Reset (VDD, VDDA)
SSOP−24 with an Exposed Pad
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These are Pb−Free Devices

Show

NCV7751DQR2G Specifications
