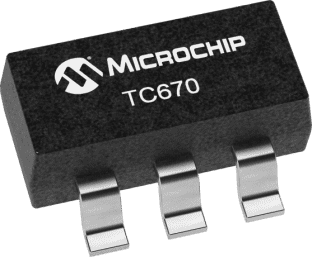

TC670ECHTR - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC14574196
Category:
Power Monitor
Package:
SOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Fan Control, Temp Monitor -40℃ ~ 85℃ Internal Sensor Open Drain Output SOT-23-6
Stock Locations:
Availability:
1,750 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.14

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC670ECHTR is an integrated Fan Speed Sensor predicts or detects fan failure, preventing thermal damage to systems with cooling fans. When the fan speed falls below user-specified level, the TC670 asserts an ALERT signal. With this design, a critical minimum fan speed is determined by the user. The fan alert level is then set with a resistor divider on the THRESHOLD pin (Pin 1) of the TC670. When the minimum fan speed is reached, the ALERT pin (Pin 5) changes from a digital high to low. This failure detection works with all linear-controlled 2-wire fans. The TC670 eliminates the need for 3-wire fan solutions. A CLEAR option can be used to reset the ALERT signal, allowing the flexibility of connecting the ALERT output of the TC670 with other ALERT/FAULT interrupts in the system. This feature can be implemented so that false fan fault conditions do not initiate system shutdown.
Fan wear-out detection for 2-wire linear-controlled fans
Replacement system for 3-wire fans
Fan alert signal when fan speed is below programmed threshold
CLEAR capability for eliminating false alarm
90µA Typical low operating current

Show

TC670ECHTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Supply Voltage (DC)	3.00V (min)
Operating Voltage	3V ~ 5.5V
Number of Outputs	1 Output
Input Voltage (DC)	6.30 V
Output Voltage	0.3 mV
Output Current	0.025 A
Supply Current	150 μA
Number of Channels	1 Channel
Number of Positions	6 Position
Threshold Voltage	124 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±10 %
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	3.1 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
