NRVTS245ESFT1G ON Semiconductor - Schottky Diodes

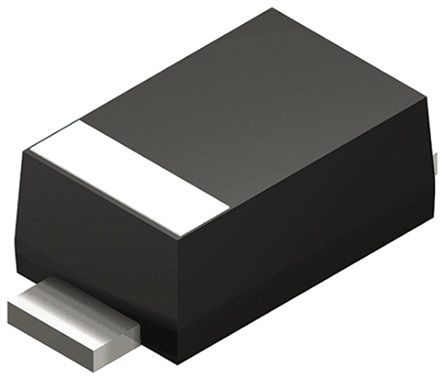

Image is for your reference only,please check specifications for details

NRVTS245ESFT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC11256155
Category:
Schottky Diodes
Package:
SOD-123-2
Datasheet:
Datasheet 3D Model
Description:
NRVTS245ESFT1G — это очень низкоомный диод Шоттки с транзисторным переходом, выполненный в формованном эпоксидном корпусе. Он подходит для использования в источниках питания с коммутацией, включая компактные адаптеры и плоские дисплеи, высокочастотные и DC-DC преобразователи, а также в диодах свободного вращения и для защиты от обратного подключения батареи. * Технология Шоттки с тонкой литографией, основанная на транзисторном переходе, обеспечивает крайне низкое прямое напряжение и минимальное утечку * Быстрая коммутация при исключительной температурной стабильности * Низкие потери мощности и более низкая рабочая температура * Более высокий КПД для соблюдения нормативных требований * Низкое термическое сопротивление * Высокая способность к импульсным нагрузкам * Соответствует требованиям AEC-Q101 и способен выполнять PPAP * Класс горючести UL94V-0
Stock Locations:
Availability:
330 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.26

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

SOD-323F, 2,4 В, 550 мВ

Show

NRVTS245ESFT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123-2
Number of Positions	2 Position
Forward Voltage	650mV @2A
Forward Current	2 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	650 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 175℃
	Show
Size-Length	2.9 mm
Size-Width	1.8 mm
Size-Height	0.9 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
