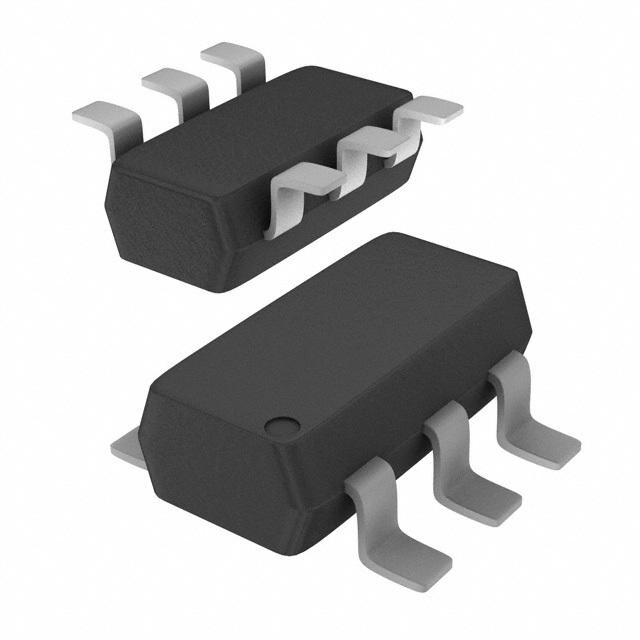

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Power MOSFET Features • Ultra Low RDS(on) • Higher Efficiency Extending Battery Life • Miniature TSOP−6 Surface Mount Package • Pb−Free Package is Available Applications • Power Management in Portable and Battery−Powered Products, i.e.:Cellular and Cordless Telephones, and PCMCIA Cards

Show

NTGS3443T1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Voltage Rating (DC)	-20.0 V
Current Rating	-2.00 A
Drain to Source Resistance (on) (Rds)	65.0 mΩ
Polarity	P-Channel
Power Dissipation	500mW (Ta)
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Gate to Source)	±12.0 V
Continuous Drain Current (Ids)	2.20 A
Rise Time	18.0 ns
Input Capacitance (Ciss)	565pF @5V(Vds)
Power Dissipation (Max)	500mW (Ta)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
