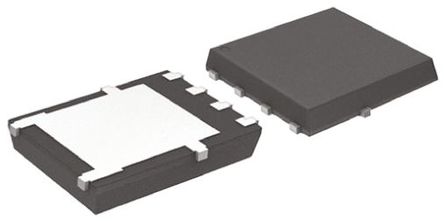

Image is for your reference only,please check specifications for details

NTMFS4935NT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC8104929
Category:
MOSFET, MOSFET Transistor
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Power MOSFET 30V 93A 3.2mOhm Single N-Channel SO-8FL, DFN5 5X6, 1.27P (SO 8FL), 1500-REEL
Stock Locations:
Availability:
1,767 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NTMFS4935NT1G is a N-channel Power MOSFET offers 30V drain source voltage and 21.8A continuous drain current. It is suitable for CPU power delivery and DC-to-DC converter applications.
Low RDS (ON) to minimize conduction losses
Low capacitance to minimize driver losses
Optimized gate charge to minimize switching losses
Halogen-free
-55 to 150°C Operating junction temperature range

Show

NTMFS4935NT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0027 Ω
Polarity	N-Channel
Power Dissipation	48 W
Threshold Voltage	1.63 V
Drain to Source Voltage (Vds)	30 V
Rise Time	20 ns
Input Capacitance (Ciss)	4850pF @15V(Vds)
Input Power (Max)	930 mW
Fall Time	6.6 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	930mW (Ta), 48W (Tc)
	Show
Size-Length	5.1 mm
Size-Width	6.1 mm
Size-Height	1.1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
