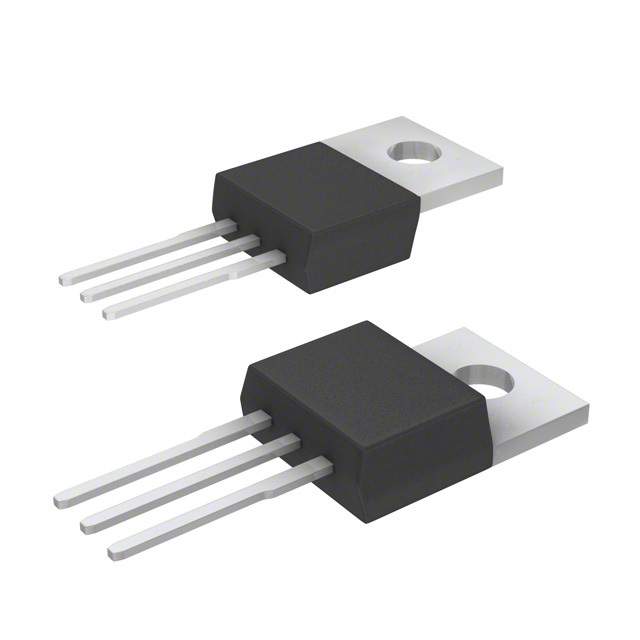

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Power 7A 70 V Bipolar NPN Transistor is designed for use in general-purpose amplifier and switching applications.
Features
---
|
DC Current Gain Specified to 7.0 Amperes
hFE = 30-150 @ IC
hFE = 3.0 Adc 2N6111, 2N6288
hFE = 2.3 (Min) @ IC = 7.0 Adc - All Devices
Collector-Emitter Sustaining Voltage
VCEO(sus) = 30 Vdc (Min) 2N6111, 2N6288
VCEO(sus) = 50 Vdc (Min) - 2N6109
VCEO(sus) = 70 Vdc (Min) - 2N6107, 2N6292
High Current Gain Bandwidth Product
fT = 4.0 MHz (Min) @ IC = 500 mAdc 2N6288, 90, 92
fT = 10 MHz (Min) @ IC = 500 mAdc - 2N6107, 09, 11
TO-220AB Compact Package
Pb-Free Packages are Available

Show

2N6109 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Voltage Rating (DC)	-50.0 V
Current Rating	7.00 A
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	7A
hFE Min	30 @2.5A, 4V
hFE Max	150
Input Power (Max)	40 W
Power Dissipation (Max)	40 W
	Show
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	50
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
