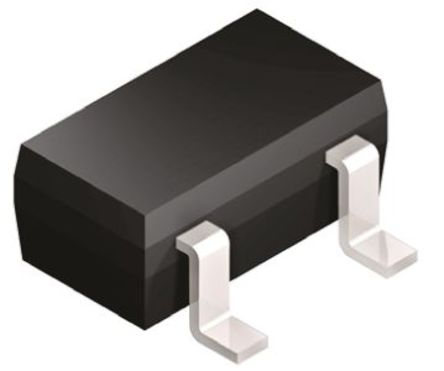

NTR4003NT3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2070219
Category:
MOSFET, MOSFET Transistor
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
Small Signal MOSFET 30V 560mA 1.5Ω Single N-Channel SOT-23, SOT-23 (TO-236) 3 LEAD, 10000-REEL
Stock Locations:
Availability:
4 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NTR4003NT3G is a N-channel Small Signal MOSFET features low gate voltage threshold to facilitate drive circuit design and minimum breakdown voltage rating of 30V. It is suitable for level shifting, logic switches and low side load switches.
Low gate charge for fast switching
ESD protected gate

Show

NTR4003NT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.5 Ω
Polarity	N-Channel
Power Dissipation	830 mW
Threshold Voltage	800 mV
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30.0 V
Continuous Drain Current (Ids)	560 mA
Rise Time	47.9 ns
Input Capacitance (Ciss)	21pF @5V(Vds)
Input Power (Max)	690 mW
Fall Time	64.2 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	690mW (Ta)
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.01 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
