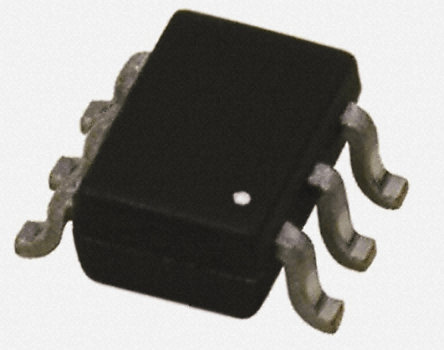

NUP2202W1T2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC936222
Category:
TVS Diode
Package:
SC-70-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NUP2202W1T2G ESD Protection Device, 20V, SC-88, 6Pins, 5V, 500W
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Even low voltage discharges can cause damage to electronic components so get this diode array NUP2202W1T2G ESD protection device from ON Semiconductor for added protection. This device"s maximum clamping voltage is 20 V. This ESD diode has a maximum ESD protection device voltage of 20@Air Gap/20@Contact Disc/16@HBM/0.4@MM kV. This ESD diode has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It is made in a dual configuration.

Show

NUP2202W1T2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Operating Voltage	5 V
Capacitance	5 pF
Breakdown Voltage	6 V
Number of Channels	2 Channel
Number of Positions	6 Position
Power Dissipation	500 W
Clamping Voltage	20 V
Test Current	1 mA
Peak Pulse Power	500 W
Min Breakdown Voltage	6 V
Reverse Breakdown Voltage	6 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
