NX3DV42GU10X - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC15382759
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
XQFN-10
Datasheet:
Datasheet 3D Model
Description:

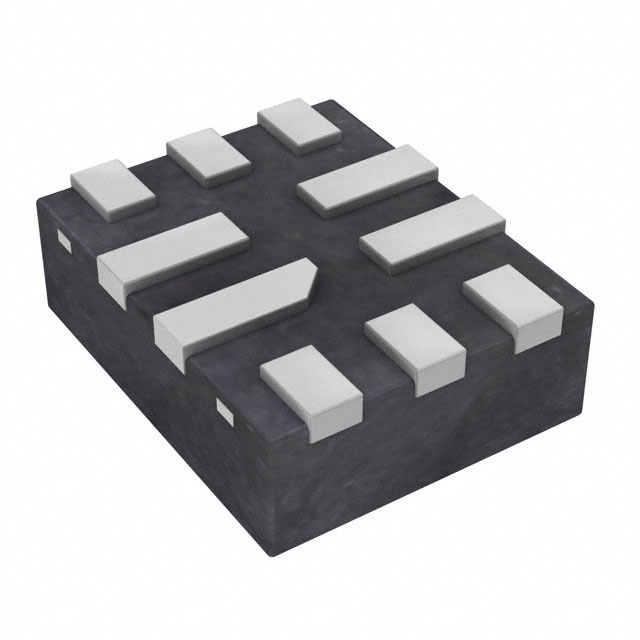

Interface IC - analogue switches NXP Semiconductors NX3DV42GU10X XQFN 10
Stock Locations:
Availability:
317 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.33

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
The NX3DV42 is a double-pole double-throw analog switch suitable for use as an analog or digital multiplexer/demultiplexer. Its wide bandwidth and low bit-to-bit skew allows the NX3DV42 to pass high-speed differential signals with good signal integrity. Its high channel to channel crosstalk rejection results in minimal noise interference. The bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480 Mb/s). It consist of two switches, each with two independent input/outputs (HSDn+ and HSDn-) and a common input/output (D+ or D-). One digital inputs (S) is used to select the switch position. When pin OE is HIGH, the switches are turned off. Schmitt trigger action at the select input (S) and enable input (OE) makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 3.0 V to 4.3 V.
MoreLess
## Features
* Supply voltage range from 3.0 V to 4.3 V
* 4 Ω typical ON resistance
* 7.3 pF typical ON capacitance
* 950 MHz typical bandwidth or data frequency
* Low crosstalk of -30 dB at 240 MHz
* Break-before-make switching
* ESD protection:
* HBM JESD22-A114F Class 3A exceeds 4000 V
* CDM AEC-Q100-011 revision B exceeds 1000 V
* HBM exceeds 12000 V for power to GND protection
* Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
* Specified from -40 °C to +125 °C
## Target Applications
* Cell phone, PDA, Digital camera and notebook
* LCD monitor, TV and set-top box
