Description
- DESCRIPTION
- The OPA211 series achieves very low 1.1nV/√Hz noise density with a supply current of only 3.6mA. It also offers rail-to-rail output swing, which helps to maximize dynamic range. The OPA211 series’ extremely low voltage and current noise, high speed and wide output swing make it an excellent choice as a loop filter amplifier in PLL applications.
- FEATURES
- • LOW-VOLTAGE NOISE: 1.1nV/√Hz at 1kHz
- • 100nVPP INPUT VOLTAGE NOISE, 0.1Hz–10Hz
- • LOW OFFSET VOLTAGE: 100µV (max)
- • LOW OFFSET VOLTAGE DRIFT: 0.2µV/°C (typ)
- • LOW SUPPLY CURRENT: 3.6mA/Ch
- • UNITY GAIN STABLE
- • GAIN BANDWIDTH PRODUCT: 80MHz (G = 100)
- • SLEW RATE: 27V/µs
- • WIDE SUPPLY RANGE: ±2.25V to ±18V, +4.5V to +36V
- • RAIL-TO-RAIL OUTPUT
- • OUTPUT CURRENT: 30mA
- • SHUTDOWN: 20µA (max)
- • AVAILABLE IN TINY DFN-8 (3x3mm), MSOP-8, SO-8
- APPLICATIONS
- • PLL LOOP FILTER
- • LOW-NOISE, LOW-POWER SIGNAL PROCESSING
- • HIGH-PERFORMANCE ADC DRIVERS
- • HIGH-PERFORMANCE DAC OUTPUT AMPLIFIER
- • ACTIVE FILTERS
- • LOW-NOISE INSTRUMENTATION AMPS
- • ULTRASOUND AMPLIFIERS
- • PROFESSIONAL AUDIO PREAMPLIFIERS
- • LOW-NOISE FREQUENCY SYNTHESIZERS
- • INFRARED DETECTOR AMPLIFIERS
- • HYDROPHONE AMPLIFIERS
- • MEDICAL

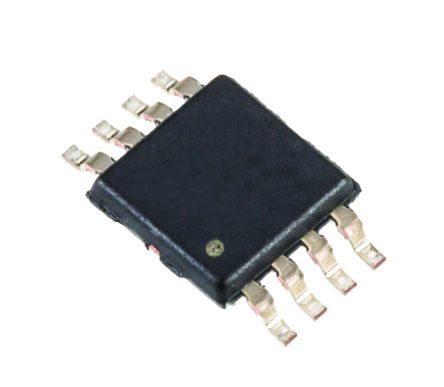

OPA211IDGKT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Output Current | 30 mA |
| Supply Current | 3.6 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 110 dB |
| Input Offset Drift | 150 nV/K |
| Slew Rate | 27.0 V/μs |
| Gain Bandwidth Product | 80 MHz |
| Thermal Shutdown | No |
| Input Offset Voltage | 0.125 mV |
| Input Bias Current | 60 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 80 MHz |
| Minimum CMRR Range | 110 dB |
| Supply Voltage | 5V ~ 36V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
