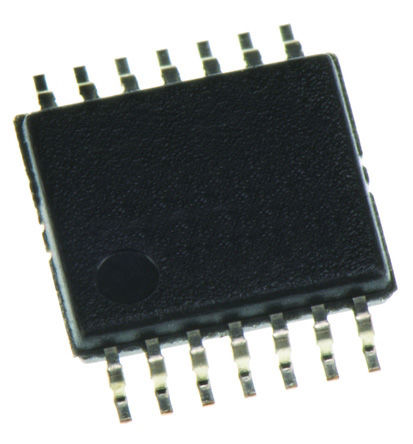

Image is for your reference only,please check specifications for details

OPA4317IPW - TI
Manufacturer:
TI
ManyChip's Part#:
MC41141546
Category:
Operational Amplifier, OP Amp IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA4317IPW Operational Amplifier, Quad, 4 Amplifier, 300kHz, 0.15V/µs, 1.8V to 5.5V, TSSOP, 14Pins
Stock Locations:
Availability:
286 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.38

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA4317IPW is a quad low offset Operational Amplifier with rail-to-rail input and output. The CMOS operational amplifier offers precision performance. This device is members of the zero-drift family of amplifier that uses a proprietary auto-calibration technique to simultaneously provide low offset voltage (90µV maximum) and near-zero drift over time and temperature at only 35µA (maximum) of quiescent current. The OPA317 family features rail-to-rail input and output in addition to near flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system.
Internal EMI/RFI filtering
108dB Typical CMRR
0.05µV/°C Typical offset drift
Green product and no Sb/Br

Show

OPA4317IPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Current	21 µA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	95dB ~ 108dB
Input Offset Drift	50.0 nV/K
Bandwidth	300 kHz
Slew Rate	150 mV/μs
Gain Bandwidth Product	300 kHz
Input Offset Voltage	0.09 mV
Input Bias Current	0.000155μA @5.5V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.3 MHz
Minimum CMRR Range	95 dB
Supply Voltage	1.8V ~ 5.5V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
