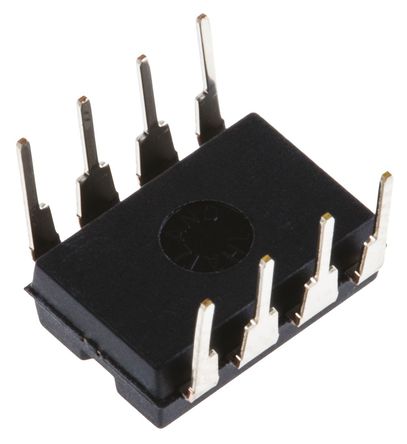

Image is for your reference only,please check specifications for details

OPA551PA - TI
Manufacturer:
TI
ManyChip's Part#:
MC3343844
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA551PA Operational Amplifier, Single, 1 Amplifier, 3MHz, 15V/µs, ± 4V to ± 30V, DIP, 8Pins
Stock Locations:
Availability:
1,647 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.03

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA551x devices are low-cost operational amplifiers with high-voltage (60-V) and high-current (200-mA) capability.
The OPA551 is unity-gain stable and features high slew rate (15 V/µs) and wide bandwidth (3 MHz). The OPA552 is optimized for gains of 5 or greater, and offers higher speed with a slew rate of 24 V/µs and a bandwidth of 12 MHz. Both devices are suitable for telephony, audio, servo, and test applications.
These laser-trimmed, monolithic integrated circuits provide excellent low-level accuracy along with high output swing. High performance is maintained as the amplifier swings to its specified limits.
The OPA55x devices are internally protected against overtemperature conditions and current overloads. The thermal shutdown indicator flag provides a current output to alert the user when thermal shutdown has occurred.
The OPA55x devices are available in PDIP-8 and SOIC-8 packages, as well as a DDPAK-7/TO-263 surface-mount plastic power package. They are specified for operation over the extended industrial temperature range, 40°C to +125°C.

Show

OPA551PA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Output Current	200 mA
Supply Current	7 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	92 dB
Input Offset Drift	7.00 µV/K
Bandwidth	3 MHz
Slew Rate	15.0 V/μs
Gain Bandwidth Product	3 MHz
Input Offset Voltage	1 mV
Input Bias Current	20 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3 MHz
Minimum CMRR Range	92 dB
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
