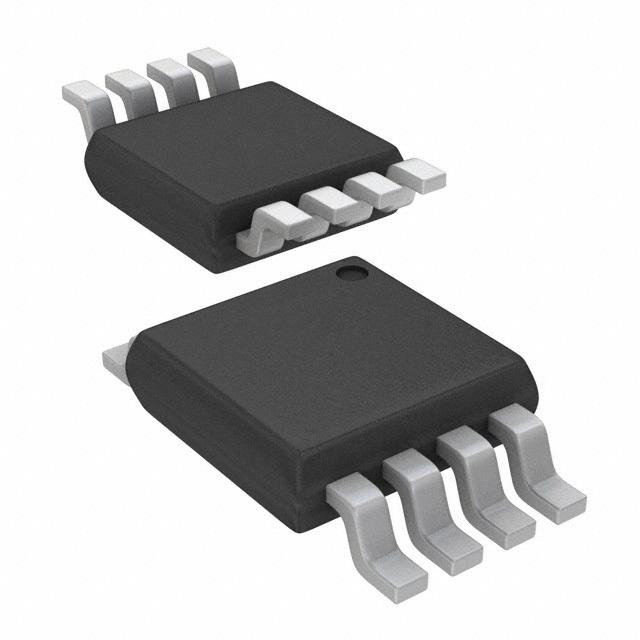

Image is for your reference only,please check specifications for details
- OPA827AIDGKR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC46198759
-
Category:Operational Amplifier, OP Amp IC
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Low-Noise, High-Precision, JFET-Input Operational Amplifier 8-VSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:291 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.46
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The OPA827 series of JFET operational amplifiers combine outstanding dc precision with excellent ac performance. These amplifiers offer low offset voltage (150μV, max), very low drift over temperature (0.5μV/°C, typ), low bias current (3pA, typ), and very low 0.1Hz to 10Hz noise (250nV PP, typ). The device operates over a wide supply voltage range, ±4V to ±18V on a low supply current (4.8mA/Ch, typ).
- FEATURES
- • INPUT VOLTAGE NOISE DENSITY: 4nV/√Hz at 1kHz
- • INPUT VOLTAGE NOISE: 0.1Hz to 10Hz: 250nVPP
- • INPUT BIAS CURRENT: 10pA (max)
- • INPUT OFFSET VOLTAGE: 150μV (max)
- • INPUT OFFSET DRIFT: 2.0μV/°C (max)
- • GAIN BANDWIDTH: 22MHz
- • SLEW RATE: 28V/μs
- • QUIESCENT CURRENT: 4.8mA/Ch
- • WIDE SUPPLY RANGE: ±4V to ±18V
- • PACKAGES: SO-8 and MSOP-8
OPA827AIDGKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Supply Current | 4.8 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 104 dB |
| Input Offset Drift | 100 nV/K |
| Slew Rate | 28.0 V/μs |
| Gain Bandwidth Product | 22 MHz |
| Thermal Shutdown | No |
| Input Offset Voltage | 75 µV |
| Input Bias Current | 15 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 22 MHz |
| Minimum CMRR Range | 104 dB |
| Supply Voltage | 8V ~ 36V |
| Show | |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
