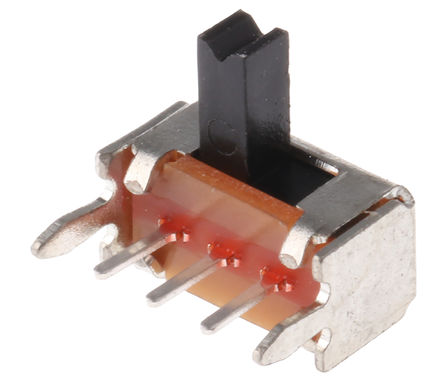

Image is for your reference only,please check specifications for details
- OS102011MA1QN1 - C&K Components
-
Manufacturer:C&K Components
-
ManyChip's Part#:MC518062
-
Category:Slide Switch, Switch Slide
-
Package:100
-
Datasheet:Datasheet 3D Model
-
Description:Switch Slide ON ON SPDT Side Slide 0.1A 12VDC 10000Cycle PC Pins Bracket Mount/Through Hole Bulk
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OS series from C &K Components are miniature slide switches.
- Variety of actuators & terminations
- PC and panel mounting
- Gold or silver plating available
- Shorting or non shorting contacts
- SPDT, SP3T, DPDT and DP3T contact configuration
- Minimum insulation resistance 100Mohm at 500VDC
- Operating temperature range -10°C to +70°C
OS102011MA1QN1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | 100 |
| Voltage Rating (DC) | 12 V |
| Current Rating | 0.1 A |
| Insulation Resistance | 100 MΩ |
| Number of Rows | 1 Row |
| Orientation | Right Angle |
| Contacts Type | SPDT |
| Contact Resistance | 20 mΩ |
| Contact Current Rating | 100mA @12VDC |
| Current Rating (Max) | 0.1A @12VDC |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Voltage Rating | 12 VDC |
| Voltage Rating (DC Max) | 12 V |
| Show | |
| Size-Length | 8.6 mm |
| Size-Width | 4.4 mm |
| Size-Height | 4.7 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -30℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536509050 |
| ECCN Code | EAR99 |
