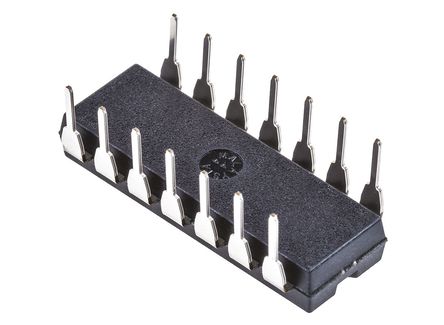

PGA202KP - TI
Manufacturer:
TI
ManyChip's Part#:
MC3369682
Category:
Instrumentation Amplifier IC
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PGA202KP Instrument Amplifier, 1, 2mV, 20V/ s, 1MHz, 6V to 18V, DIP
Stock Locations:
Availability:
408 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 18.03

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGA202KP is a digitally controlled programmable-gain Instrumentation Amplifier for use with dynamic range expansion. The monolithic instrumentation amplifier with digitally controlled gains of 1, 10, 100 and 1000. It has TTL or CMOS-compatible inputs for easy microprocessor interface. It has FET inputs and a new transconductance circuitry that keeps the bandwidth nearly constant with gain. Gain and offset is laser trimmed to allow use without any external components.
New transconductance circuitry
50pA Maximum low bias current
2µs to 0.01% Fast settling
0.012% Maximum low non-linearity

Show

PGA202KP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Supply Voltage (DC)	36.0V (max)
Supply Current	6.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	14 Position
Power Dissipation	0.75 W
Common Mode Rejection Ratio	120 dB
Quiescent Current	6.50 mA
Bandwidth	1 MHz
Slew Rate	15.0 V/μs
Gain Bandwidth Product	1 MHz
Gain	1.00 kdB
Input Offset Voltage	2 mV
Input Bias Current	10 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	1 MHz
Power Dissipation (Max)	750 mW
Minimum CMRR Range	80 dB
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	12 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
