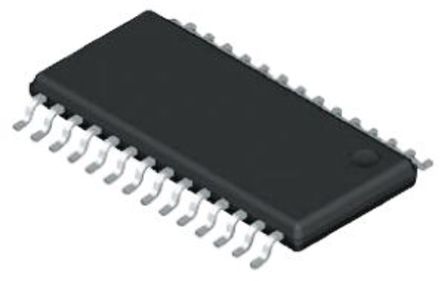

Image is for your reference only,please check specifications for details

PGA4311U - TI
Manufacturer:
TI
ManyChip's Part#:
MC8270887
Category:
Active Chip
Package:
SOIC-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PGA4311U Audio Control, Volume, ± 4.75V to ± 5.25V, Serial, SPI, SOIC, 28Pins, -40℃
Stock Locations:
Availability:
289 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.88

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGA4311U is a 4-channel high-performance Audio Volume Control designed for professional and high-end consumer audio systems. Using high performance operational amplifier stages internal to the PGA4311 yields low noise and distortion, while providing the capability to drive 600R loads directly without buffering. The 3-wire serial control interface allows for connection to a wide variety of host controllers, in addition to support for daisy-chaining of multiple PGA4311 devices. It is fabricated in a sub-micron CMOS process. The heart of this controller is a resistor network, an analog switch array and a high-performance op-amp stage. The switches are used to select taps in the resistor network that, in turn, determine the gain of the amplifier stage. Switch selections are programmed using a serial control port. The serial port allows connection to a wide variety of host controllers.
Four independent audio channels
Serial control interface
Zero crossing detection
Mute function
Low interchannel crosstalk
Low noise and distortion
Green product and no Sb/Br

Show

PGA4311U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Supply Voltage (DC)	-5.00 V
Number of Channels	4 Channel
Number of Positions	28 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	18 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
