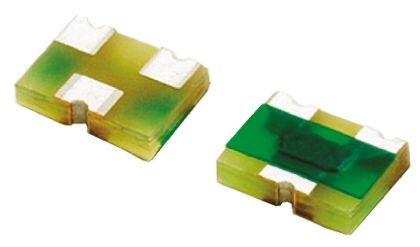

PGB102ST23WR - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC1154926
Category:
TVS Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
PGB1 Series 150V 0.12pF Bi-Directional SMT PulseGuard® ESD Suppressor - SOT-23
Stock Locations:
Availability:
1,625 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.42

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PGB102ST23WR is a PULSE-GUARD® bi-directional surface-mount Electrostatic Discharge Suppressor. It helps to protect sensitive electronic equipment against electrostatic discharge (ESD). They supplement the on-chip protection of integrated circuitry and are best suited for low-voltage, high-speed applications where low capacitance is important. Data ports utilizing such high-speed protocols as USB 2.0, IEEE1394, HDMI and DVI can benefit from this new technology. The PULSE-GUARD® PGB1 series suppressor use polymer composite materials to suppress fast-rising ESD transients (as specified in IEC 61000-4-2), while adding virtually no capacitance to the circuit.
Extended pulse life over previous versions
New, reduced trigger voltage
Ultra-low capacitance
Low leakage current
Fast response time
2-lines of protection
500V Peak voltage (typical)
24VDC Maximum rated voltage
0.12pF Capacitance (typical)

Show

PGB102ST23WR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	24.0 V
Operating Voltage	24.0V (max)
Capacitance	0.12 pF
Breakdown Voltage	500 V
Number of Circuits	2 Circuit
Number of Positions	3 Position
Clamping Voltage	150 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Voltage Rating (Max)	24 VDC
	Show
Size-Length	3 mm
Size-Width	2.99 mm
Size-Height	0.69 mm
Operating Temperature	-65℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
