Description

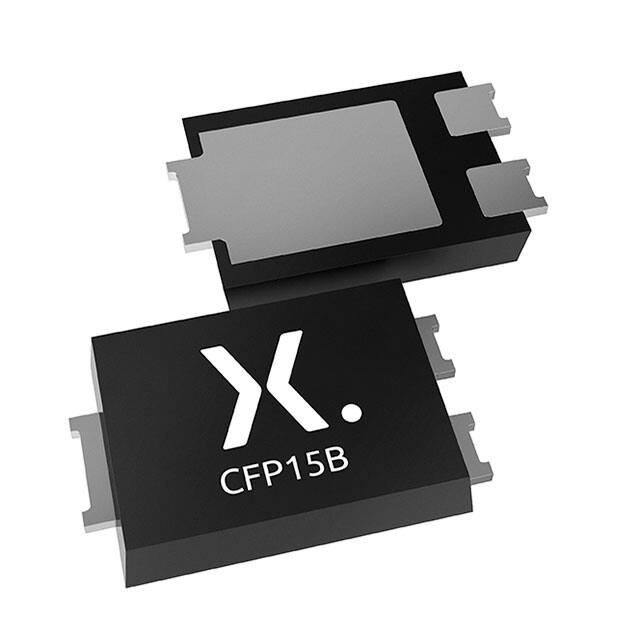

The PMEG060V100EPD is a low VF planar maximum efficiency general application (MEGA) Schottky Barrier Rectifier with an integrated guard ring for stress protection. It is encapsulated in a power and flat lead surface-mounted device (SMD) plastic package. It is suitable for use in free-wheeling application.
High power capability due to clip-bonding technology and heat sink
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption

Show

PMEG060V100EPDAZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-1289
Number of Positions	3 Position
Forward Voltage	560mV @10A
Reverse recovery time	33 ns
Forward Current	14000 mA
Max Forward Surge Current (Ifsm)	210 A
Maximum Forward Voltage (Max)	560 mV
Forward Current (Max)	14000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
Power Dissipation (Max)	3750 mW
	Show
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
