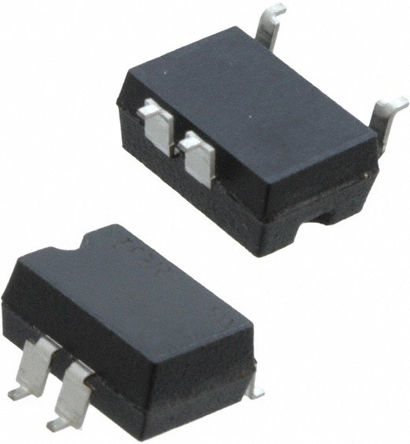

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

PVI5080NSPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	DIP-8
Supply Voltage (DC)	7.00 V
Output Voltage	10.0 V
Contacts Type	SPST-NO
Number of Channels	1 Channel
Load Current	10.0 A
Number of Positions	8 Position
Forward Voltage	1.4 V
Part Family	PVI5080NS
Isolation Voltage	4000 Vrms
Output Voltage (Max)	5 V
Output Voltage (Min)	5.0 V
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.4 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
