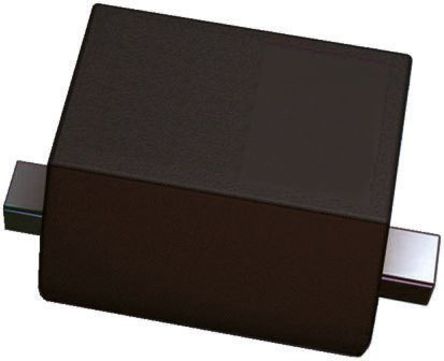

RB751S40T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC282278
Category:
Schottky Diode
Package:
SOD-523-2
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR RB751S40T1G Small Signal Schottky Diode, Single, 30V, 30mA, 370mV, 500mA, 150℃
Stock Locations:
Availability:
9,071 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RB751S40T1G is a Schottky Barrier Diode designed for high speed switching applications, circuit protection and voltage clamping. It features extremely low forward voltage reduces conduction loss. This miniature surface mount package is excellent for hand held and portable applications, where space is limited.
Extremely fast switching speed
0.28V at IF = 1mADC Extremely low forward voltage (typ.)
Low reverse current
Lead-free plating
AEC-Q101 qualified and PPAP capable
Pb-free, halogen free/BFR free

Show

RB751S40T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523-2
Voltage Rating (DC)	40.0 V
Current Rating	30.0 mA
Capacitance	2.50 pF
Output Current	≤30.0 mA
Number of Positions	2 Position
Forward Voltage	370mV @1mA
Polarity	Standard
Power Dissipation	200 mW
Thermal Resistance	635℃/W (RθJA)
Reverse recovery time	6 ns
Forward Current	30 mA
Max Forward Surge Current (Ifsm)	500 mA
Maximum Forward Voltage (Max)	370 mV
Forward Current (Max)	30 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	1.3 mm
Size-Width	0.8 mm
Size-Height	0.6 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
