Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

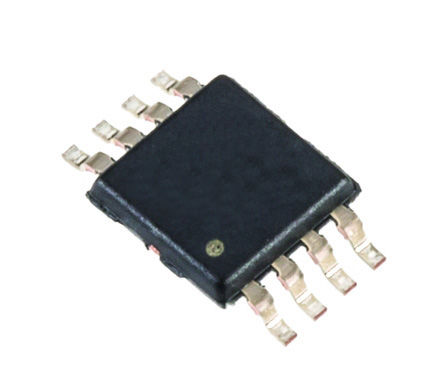

Case/Package | VSSOP-8 |
Capacitance Tolerance | ±0.1 % |
Output Voltage | 5 V |
Output Current | 10 mA |
Supply Current | 1.2 mA |
Number of Channels | 1 Channel |
Number of Positions | 8 Position |
Quiescent Current | 800 µA |
Input Voltage (Max) | 18 V |
Input Voltage (Min) | 5.2 V |
Output Voltage (Max) | 5 V |
Output Voltage (Min) | 5 V |
Output Current (Max) | 10 mA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Accuracy | 0.05 % |
Input Voltage | 5.2V ~ 18V |
Show | |
Size-Length | 3.1 mm |
Size-Width | 3.1 mm |
Size-Height | 0.95 mm |
Operating Temperature | -40℃ ~ 125℃ |
Temperature Coefficient | ±3 ppm/℃ |
Product Lifecycle Status | Active |
Packaging | Each |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
