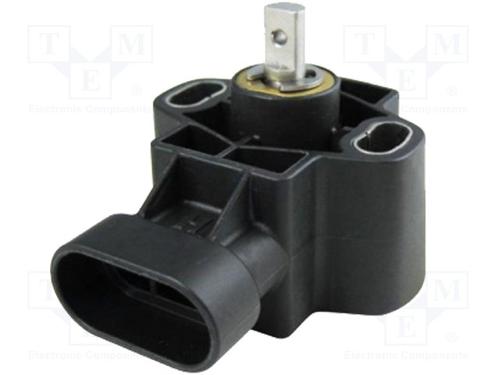

Image is for your reference only,please check specifications for details

RTY090LVEAX - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC14108261
Category:
Relay Accessory
Package:
-
Datasheet:
Datasheet 3D Model
Description:
SENSOR, ROTARY, HALL EFFECT, 90DEG; Sensor Terminals: Connector; Output Voltage M
Stock Locations:
Availability:
255 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 78.32

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RTY Series Hall-Effect Rotary Position Sensors provide angle monitoring in harsh transportation and industrial applications at a competitive cost. These products use a magnetically biased, Hall-effect integrated circuit (IC) to sense rotary movement of the actuator shaft over a set operating range. Rotation of the actuator shaft changes a magnet’s position relative to the IC. The resulting flux density change is converted to a linear output. The IC, together with conditioning and protection circuitry, and the permanent magnet, is sealed in an IP67-qualified rugged package for durability in most harsh environments. Eight operating ranges (50°, 60°, 70°, 90°, 120°, 180°, 270° and 360°) are tolerant to over-travel and allow use in most common applications. Low voltage and high voltage versions cover an input voltage range of 4.5 VDC to 30 VDC. Most applications require no lever, and no brackets are necessary. Honeywell’s industry-leading capabilities in research and development provide the customer with known quality and support.

Show

RTY090LVEAX Specifications
