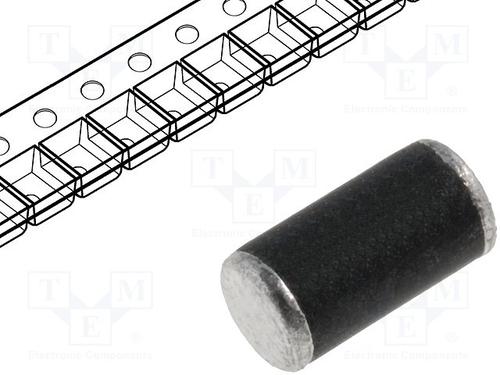

Image is for your reference only,please check specifications for details
- SA159 - Diotec Semiconductor
-
Manufacturer:Diotec Semiconductor
-
ManyChip's Part#:MC16461471
-
Package:DO-213AB
-
Datasheet:Datasheet 3D Model
-
Description:Diode: rectifying; SMD; 800V; 1A; 300ns; Package: reel, tape; MELF
-
Stock Locations:
-
Availability:9,163 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.23
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Fast Switching Surface Mount Si-Rectifiers Applications · Power supplies, relay derivers, lamp drivers. Features · Adoption of FBET, MBIT processes. · High breakdown voltage and large current capacity. · Fast switching speed. · Small and slim package permitting 2SA1593/ 2SC4135-applied sets to be made more compact.
SA159 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-213AB |
| Load Current | 1 A |
| Forward Voltage | 1.3 V |
| Reverse recovery time | 300 ns |
| Forward Current (Max) | 1 A |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -50 ℃ |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
