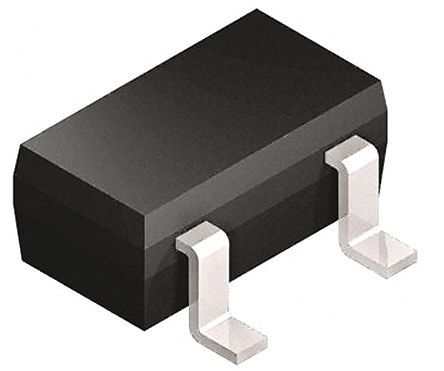

SL24T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC17039507
Category:
TVS Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR SL24T1G TVS Diode, SL24 Series, Unidirectional, 10V, 55V, SOT-23, 3Pins
Stock Locations:
Availability:
290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.04

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SL05T1G series low capacitance TVS Diode for high speed line protections. It offers transient overvoltage protection with significantly reduced capacitance. The capacitance is lowered by integrating a compensating diode in series.
<5pF Compensating diode capacitance
ESD protection meeting IEC 61000-4-2, 4-4, 4-5
300W at 8 x 20µs Peak power rating
Bi-direction protection can be achieved by using two devices
-55 to 150°C Junction temperature range

Show

SL24T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	24.0 V
Operating Voltage	24.0 V
Capacitance	5 pF
Power Rating	300 W
Halogen Free Status	Halogen Free
Breakdown Voltage	26.7 V
Number of Circuits	1 Circuit
Number of Positions	3 Position
Power Dissipation	300 W
Clamping Voltage	55 V
Test Current	1 mA
Max Breakdown Voltage	29 V
Peak Pulse Power	300 W
Min Breakdown Voltage	26.7 V
Reverse Breakdown Voltage	26.7 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
Power Dissipation (Max)	300 mW
	Show
Size-Length	3.04 mm
Size-Width	1.3 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
