Description
- Description
- The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
- Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCCbus and other vulnerable circuits used in Telecom,
- Computer, Industrial and Consumer electronic applications.

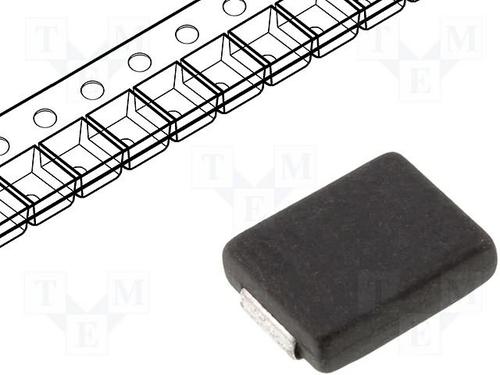

SMDJ12A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AB |
| Breakdown Voltage | 14 V |
| Number of Circuits | 1 Circuit |
| Number of Positions | 2 Position |
| Power Dissipation | 3 kW |
| Clamping Voltage | 19.9 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 14.7 V |
| Peak Pulse Power | 3000 W |
| Min Breakdown Voltage | 13.3 V |
| Reverse Breakdown Voltage | 13.3 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | -65℃ ~ 150℃ |
| Show | |
| Size-Length | 8.13 mm |
| Size-Width | 6.22 mm |
| Size-Height | 2.62 mm |
| Operating Temperature | -65℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
