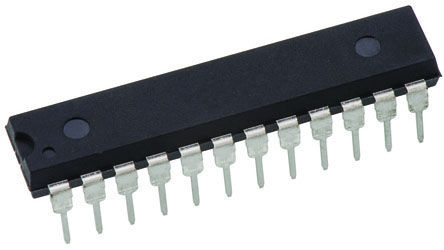

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- description
- These dual 4-bit D-type edge-triggered flip-flops feature 3-state outputs designed specifically as bus drivers. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
- • 3-State Buffer-Type Outputs Drive Bus Lines Directly
- • Bus-Structured Pinout
- • Choice of True or Inverting Logic
- – SN54ALS874B, SN74ALS874B, SN74AS874 Have True Outputs
- – SN74ALS876A, SN74AS876 Have Inverting Outputs
- • Asynchronous Clear
- • Package Options Include Plastic Small-Outline (DW) Packages, Plastic (FN) and Ceramic (FK) Chip Carriers, and Standard Plastic (NT) and Ceramic (JT) 300-mil DIPs
SN74ALS874BNT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 24 Pin |
| Case/Package | DIP-24 |
| Frequency | 30.0 MHz |
| Supply Voltage (DC) | 4.50V ~ 5.50V |
| Number of Outputs | 8 Output |
| Output Current | 24.0 mA |
| Number of Circuits | 2 Circuit |
| Clock Speed | 30 MHz |
| Number of Bits | 8 Bit |
| Propagation Delay Max (tpd) | 14.0 ns |
| Polarity | Non-Inverting |
| Voltage Nodes | 5.00 V |
| Output Current Drive | -108 µA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Show | |
| Size-Length | 31.64 mm |
| Size-Width | 6.73 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
