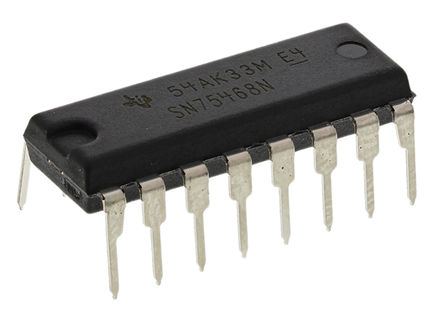

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN75468N is a 100V high-voltage, high-current Darlington Transistor Array. Each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair is 500mA. The Darlington pairs may be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers and logic buffers.
500mA Rated collector current (single output)
High voltage output (100V)
Output clamp diodes
Inputs compatible with various types of logic
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

SN75468N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	6.00 V, 6.00 V (min)
Voltage Rating (DC)	100 V
Current Rating	500 mA
Output Current	500 mA
Number of Positions	16 Position
Forward Voltage	1.70 V
Input Current	930 µA
Polarity	NPN
Input Capacitance	15.0 pF
Breakdown Voltage (Collector to Emitter)	100 V
Drivers Per Package	7
Continuous Collector Current	0.5A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage (Max)	15 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
