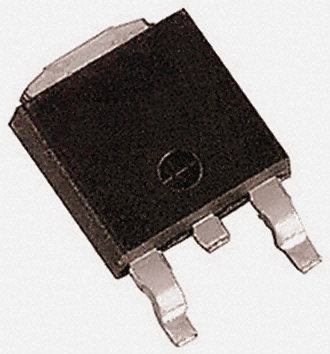

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P-Channel 60V 8.83A (Ta) 42W (Tc) Surface Mount PG-TO252-3
SPD08P06P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Voltage Rating (DC) | -60.0 V |
| Current Rating | -8.80 A |
| Number of Channels | 1 Channel |
| Polarity | P-CH |
| Power Dissipation | 42W (Tc) |
| Input Capacitance | 420 pF |
| Gate Charge | 15.0 nC |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 8.80 A |
| Rise Time | 46 ns |
| Input Capacitance (Ciss) | 335pF @25V(Vds) |
| Fall Time | 14 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 42W (Tc) |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 6.22 mm |
| Size-Height | 2.3 mm |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
