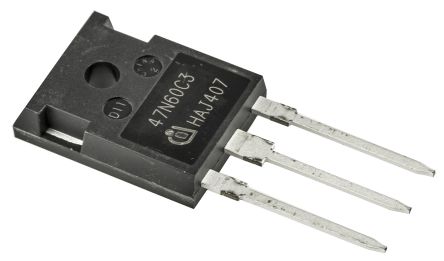

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SPW47N60C3 is a 650V N-channel CoolMOS™ Power MOSFET with low specific on-state resistance. The CoolMOS™ MOSFET offers a significant reduction of conduction, switching and driving losses and enable high power density and efficiency for superior power conversion systems. The latest state-of-the-art generation of high voltage power MOSFETs makes AC-DC power supplies more efficient, more compact, lighter and cooler than ever before.
Very low energy storage in output capacitance (Eoss) at 400V
Low gate charge (Qg)
High efficiency and power density
Outstanding performance
High reliability
Easy to use

Show

SPW47N60C3FKSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	650 V
Current Rating	47.0 A
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.07 Ω
Polarity	N-Channel
Power Dissipation	415 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	650 V
Continuous Drain Current (Ids)	47.0 A
Rise Time	27 ns
Input Capacitance (Ciss)	6800pF @25V(Vds)
Fall Time	8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	415000 mW
	Show
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
