SQMW522RJ - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC39834944
Category:
Through-Hole Resistor
Datasheet:
Datasheet 3D Model
Description:

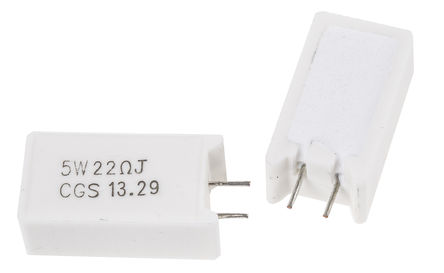

TE CONNECTIVITY / CGS SQMW522RJ Through Hole Resistor, 22Ω, 350V, Radial Leaded, 5W, ± 5%, SQ Series
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This flexible range of Power Wirewound Resistors either have wire or power oxide film elements. The SQ Series resistors are wound or deposited on a fine non-alkali ceramic core then embodied in a ceramic case and sealed with an inorganic silica filler. This design provides a resistor with high insulation resistance, low surface temperature, excellent T.C.R., and entirely fire proof construction. These resistors are ideally suited to a range of areas where low cost, and efficient thermal performance are important criteria. Metal film cores adjusted by laser spiral are used where the resistor value is above that suited to wire. Similar performance is obtained although short time overload is slightly derated.
**Features:**
* Choice of Styles
* Bracketed Types Available
* Operating Temperature: –55°C to +250°C
* Wide Value Range
* Stable TCR 300 ppm/°C
* Custom Designs Welcome
* Inorganic Flame Proof Construction

Show

SQMW522RJ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	350 V
Capacitance Tolerance	±5 %
Power Rating	5 W
Resistance	22 Ω
Resistance Tolerance	±5 %
Operating Temperature (Max)	250 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	350 V
	Show
Size-Length	13 mm
Size-Width	9 mm
Size-Height	25 mm
Lead Length	3.5 mm
Operating Temperature	-55℃ ~ 250℃
Temperature Coefficient	±300 ppm/℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8533210080
ECCN Code	EAR99
