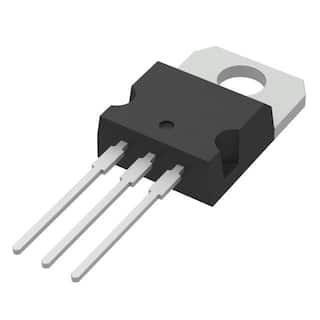

Image is for your reference only,please check specifications for details
- STP110N7F6 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC47369742
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:N-channel 68V, 0.0055Ω typ., 110A, STripFET F6 Power MOSFET in a TO-220 package
-
Stock Locations:
-
Availability:8,250 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.75
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 68V 110A (Tc) 176W (Tc) Through Hole TO-220
STP110N7F6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Power Dissipation | 176 W |
| Rise Time | 29 ns |
| Input Capacitance (Ciss) | 5850pF @25V(Vds) |
| Fall Time | 23 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 176000 mW |
| Show | |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead free |
