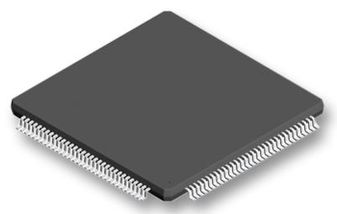

- STR911FAW46X6 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC160174153
-
Category:Microcontroller, MCU IC
-
Package:LQFP-128
-
Datasheet:Datasheet 3D Model
-
Description:MCU 16Bit/32Bit STR9 ARM966E-S RISC 1024KB Flash 1.8V/3.3V 128Pin LQFP Tray
-
Stock Locations:
-
Availability:221 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 11.75
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- STR91xFA is a series of ARM®-powered microcontrollers which combines a 16/32-bit ARM966E-S RISC processor core, dual-bank Flash memory, large SRAM for data or code, and a rich peripheral set to form an ideal embedded controller for a wide variety of applications such as point-of-sale terminals, industrial automation, security and surveillance, vending machines, communication gateways, serial protocol conversion, and medical equipment. The ARM966E-S core can perform single-cycle DSP instructions, good for speech processing, audio algorithms, and low-end imaging.
- **Key Features**
- 16/32-bit 96 MHz ARM9E based MCU
- ARM966E-S™ RISC core: Harvard archi-tecture, 5-stage pipeline, Tightly-Coupled Memories (SRAM and Flash)
- STR91xFA implementation of core adds high-speed burst Flash memory interface, instruction prefetch queue, branch cache
- Up to 96 MIPS directly from Flash memory
- Single-cycle DSP instructions supported
- Binary compatible with ARM7 code
- Dual burst Flash memories, 32-bits wide
- 256 KB/512 KB/1 MB/2 MB main Flash
- 32 KB/128 KB secondary Flash
- Sequential Burst operation up to 96 MHz
- 100 K min erase cycles, 20 yr min retention
- SRAM, 32-bits wide
- 64K or 96K bytes, optional battery backup
- 9 programmable DMA channels
- Clock, reset, and supply management
- Internal oscillator operating with external 4-25 MHz crystal
- Internal PLL up to 96 MHz
- Real-time clock provides calendar functions, tamper, and wake-up functions
- Reset Supervisor monitors supply voltage, watchdog, wake-up unit, external reset
- Brown-out monitor
- Run, Idle, and Sleep Mode as low as 50 uA
- Vectored interrupt controller (VIC)
- 32 IRQ vectors, 30 interrupt pins
- Branch cache minimizes interrupt latency
- 8-channel, 10-bit A/D converter (ADC)
- 0 to 3.6 V range, 0.7 usec conversion
- 10 Communication interfaces
- 10/100 Ethernet MAC with DMA and MII
- USB Full-speed (12 Mbps) slave device
- CAN interface (2.0B Active)
- 3 16550-style UARTs with IrDA protocol
- 2 Fast I2C, 400 kHz
- 2 channels for SPI, SSI™, or MICROWIRE™
- External Memory Interface (EMI)
- 8- or 16-bit data, up to 24-bit addressing
- Static Async modes for LQFP128
- Additional burst synchronous modes for LFBGA144
- Up to 80 I/O pins (muxed with interfaces)
- 16-bit standard timers (TIM)
- 4 timers each with 2 input capture, 2 output compare, PWM and pulse count modes
- 3-Phase induction motor controller (IMC)
- JTAG interface with boundary scan
- Embedded trace module (ARM® ETM9™)
STR911FAW46X6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 128 Pin |
| Case/Package | LQFP-128 |
| RAM Memory Size | 96K x 8 |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 2 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 14 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | 3A991A2 |
