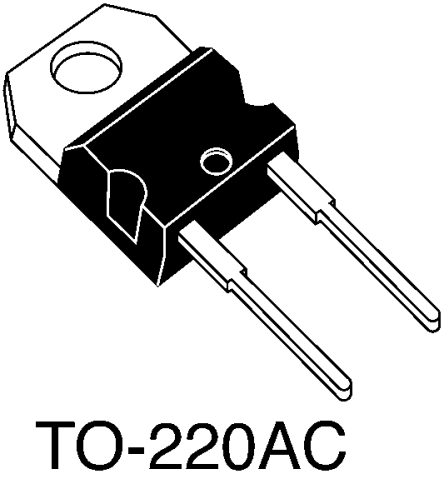

Image is for your reference only,please check specifications for details

STTH1502DI - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC28021776
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH1502DI Fast / Ultrafast Diode, 200V, 15A, Single, 1.1V, 36ns, 150A
Stock Locations:
Availability:
394 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.3

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH1502DI is an Ultra-fast Recovery Diode especially suited for switching mode base drive and transistor circuits. It is intended for use in low voltage, high frequency inverters, free-wheeling and polarity protection.
Very low conduction losses
Negligible switching losses
Low forward and reverse recovery time
High junction temperature

Show

STTH1502DI Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Forward Voltage	1.1V @15A
Thermal Resistance	3.8 ℃/W
Reverse recovery time	36 ns
Forward Current	15 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	1.1 V
Forward Current (Max)	15 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	10.45 mm
Size-Width	4.82 mm
Size-Height	9.02 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
