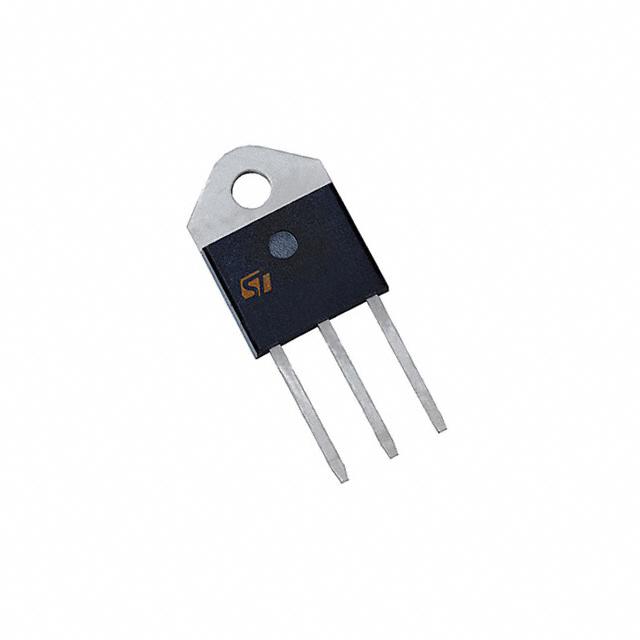

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Diode Array 1 Pair Series Connection Standard 600V 15A Through Hole TOP-3 Insulated

Show

STTH1506TPI Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TOP-I
Voltage Rating (DC)	600 V
Current Rating	15.0 A
Forward Voltage	3.6V @15A
Power Dissipation	50 W
Reverse recovery time	35 ns
Forward Current	15000 mA
Max Forward Surge Current (Ifsm)	130 A
Maximum Forward Voltage (Max)	3.6V @15A
Forward Current (Max)	15 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	15.5 mm
Size-Width	4.6 mm
Size-Height	12.85 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
