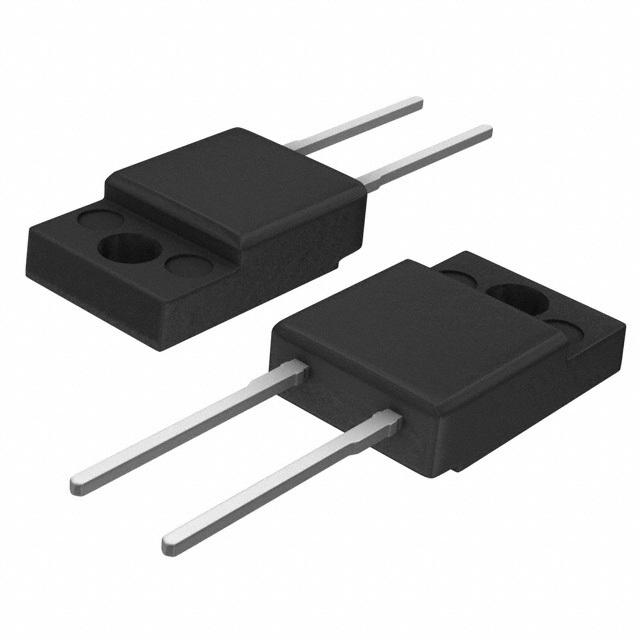

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STTH15L06FP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	600 V
Current Rating	20.0 A
Output Current	≤15.0 A
Number of Positions	2 Position
Forward Voltage	1.55V @15A
Polarity	Standard
Thermal Resistance	4 ℃/W
Reverse recovery time	85 ns
Forward Current	15 A
Max Forward Surge Current (Ifsm)	130 A
Maximum Forward Voltage (Max)	1.55 V
Forward Current (Max)	15000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
